SPR Products
Multi-Color Digital Dial in Board Kit
Multi-Color Digital Dial in Board Kit
Couldn't load pickup availability

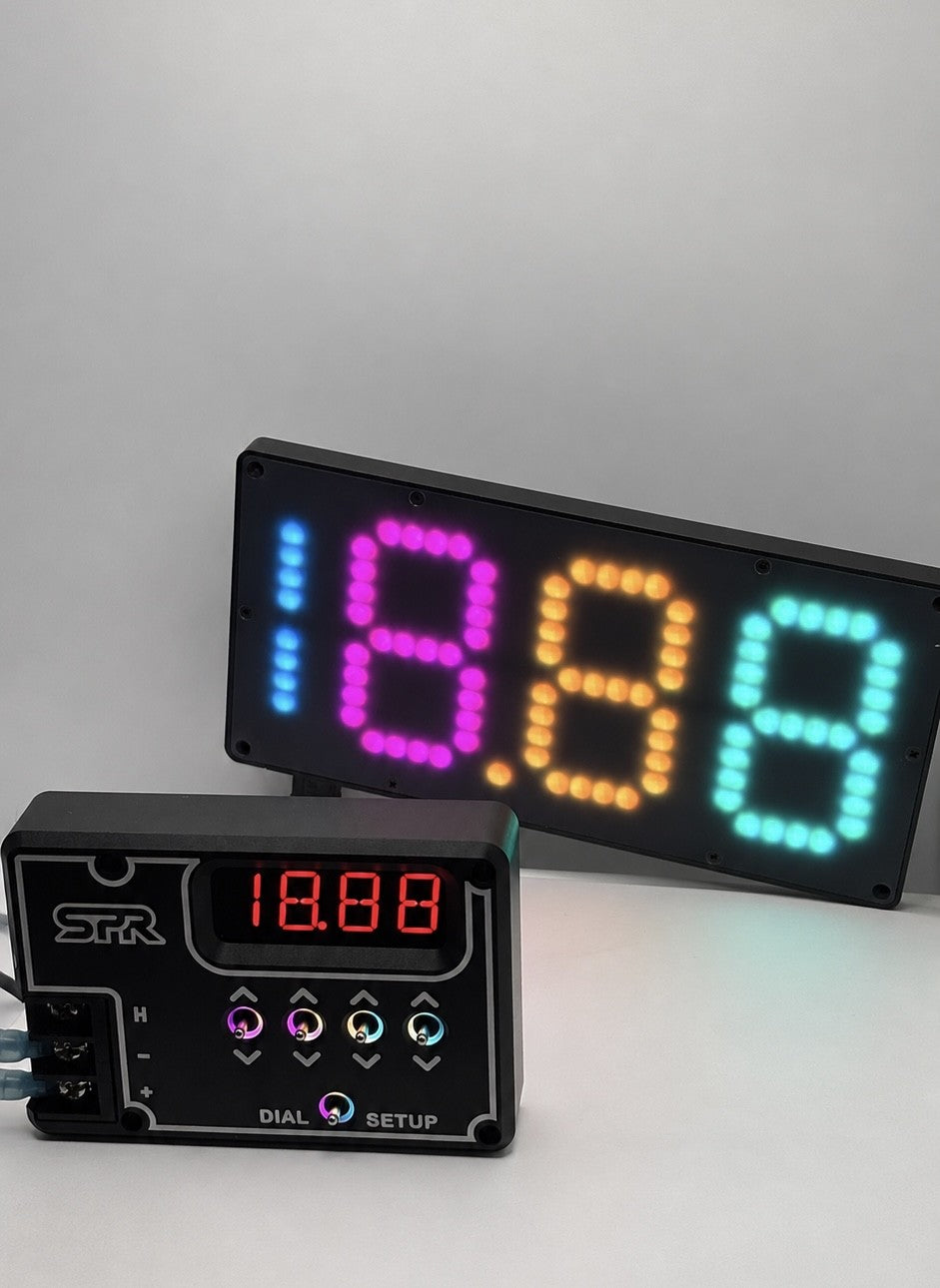

Unlimited Looks. One Dial-In Board.
Switch colors whenever you want, customize each digit individually, and save your go-to combinations as presets. The black anodized billet aluminum enclosures deliver the clean, high-end look your race car deserves

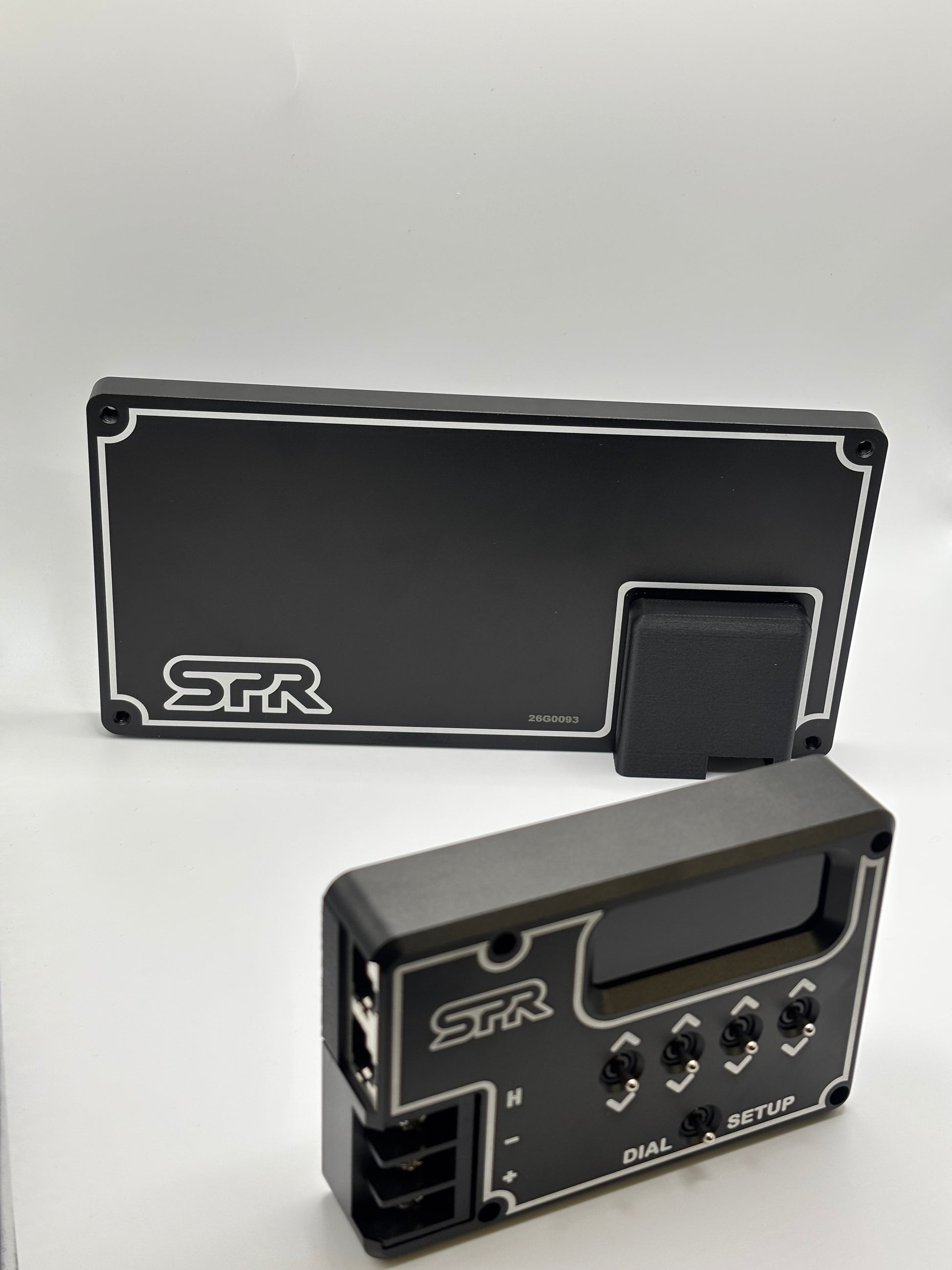

Included Content
-
Controller
-
(2) Displays
-
(2) 14’ Data Cables
-
Hardware
Features

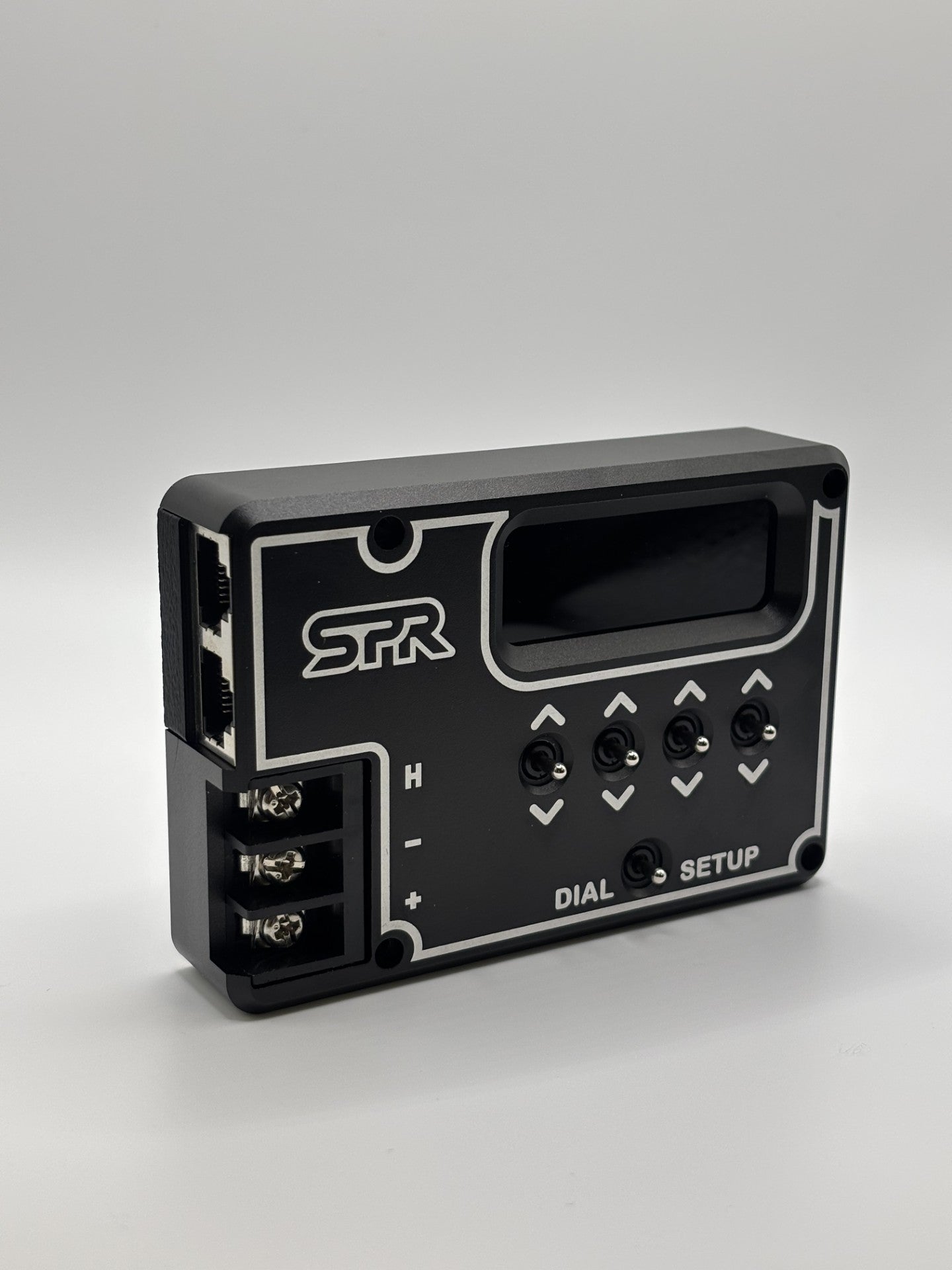

Controller
-
Multicolor LEDs that match the display for easy changing inside vehicle
- Customizable preset color options
-
Only 2 required connections (Optional 12V connection to dim brightness)
-
12V and 16V Compatible (18V Max)
-
Black anodized, billet aluminum enclosures

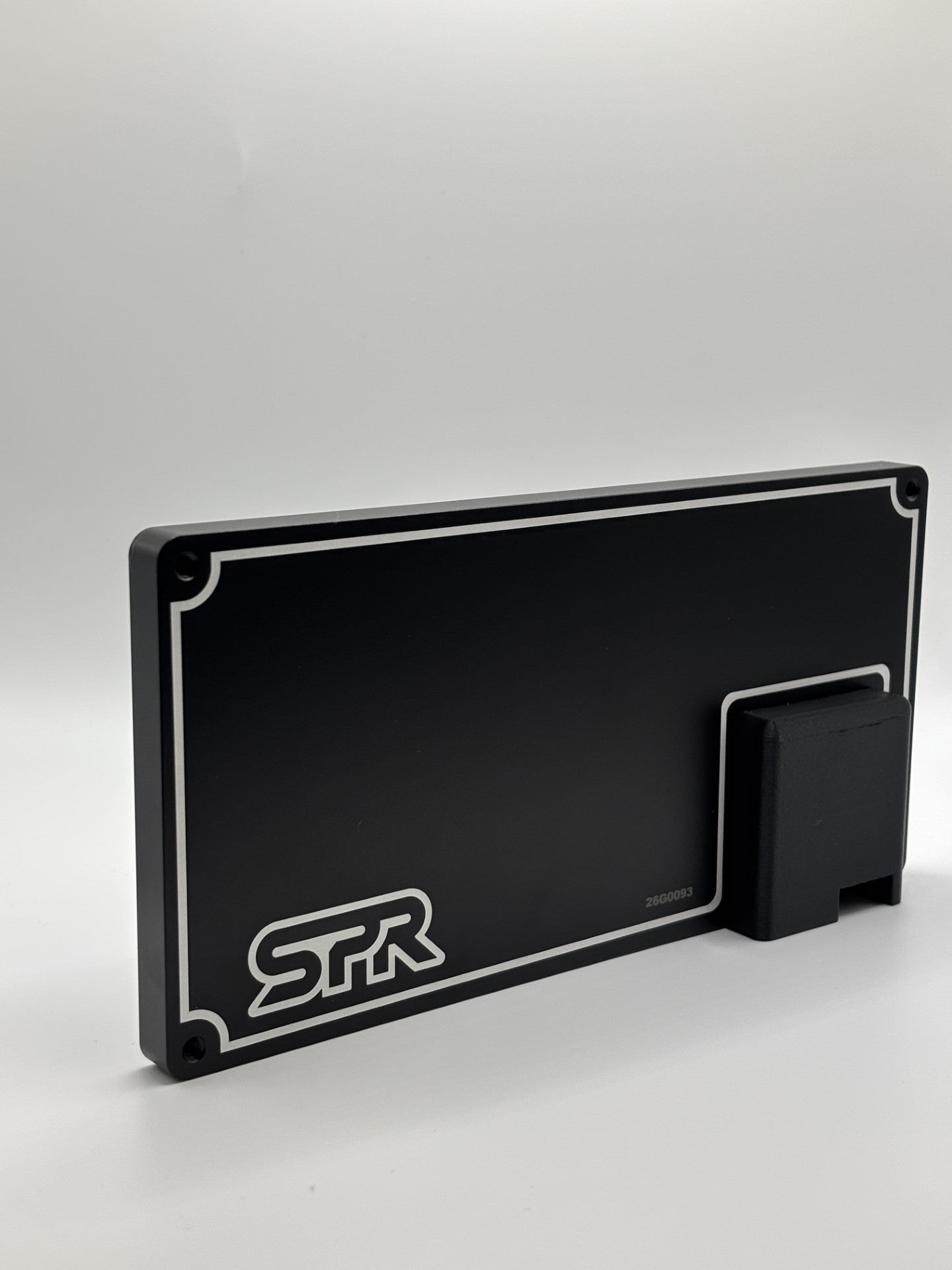

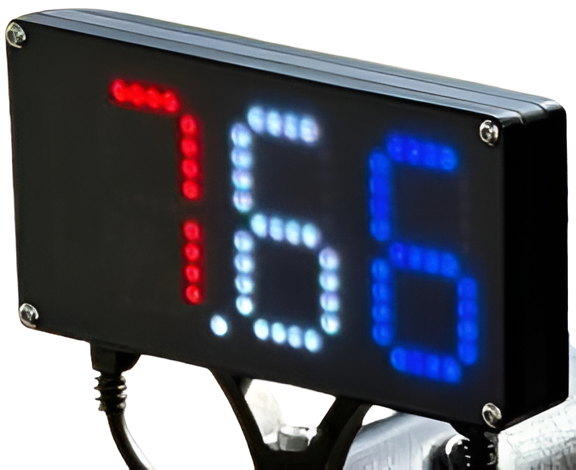

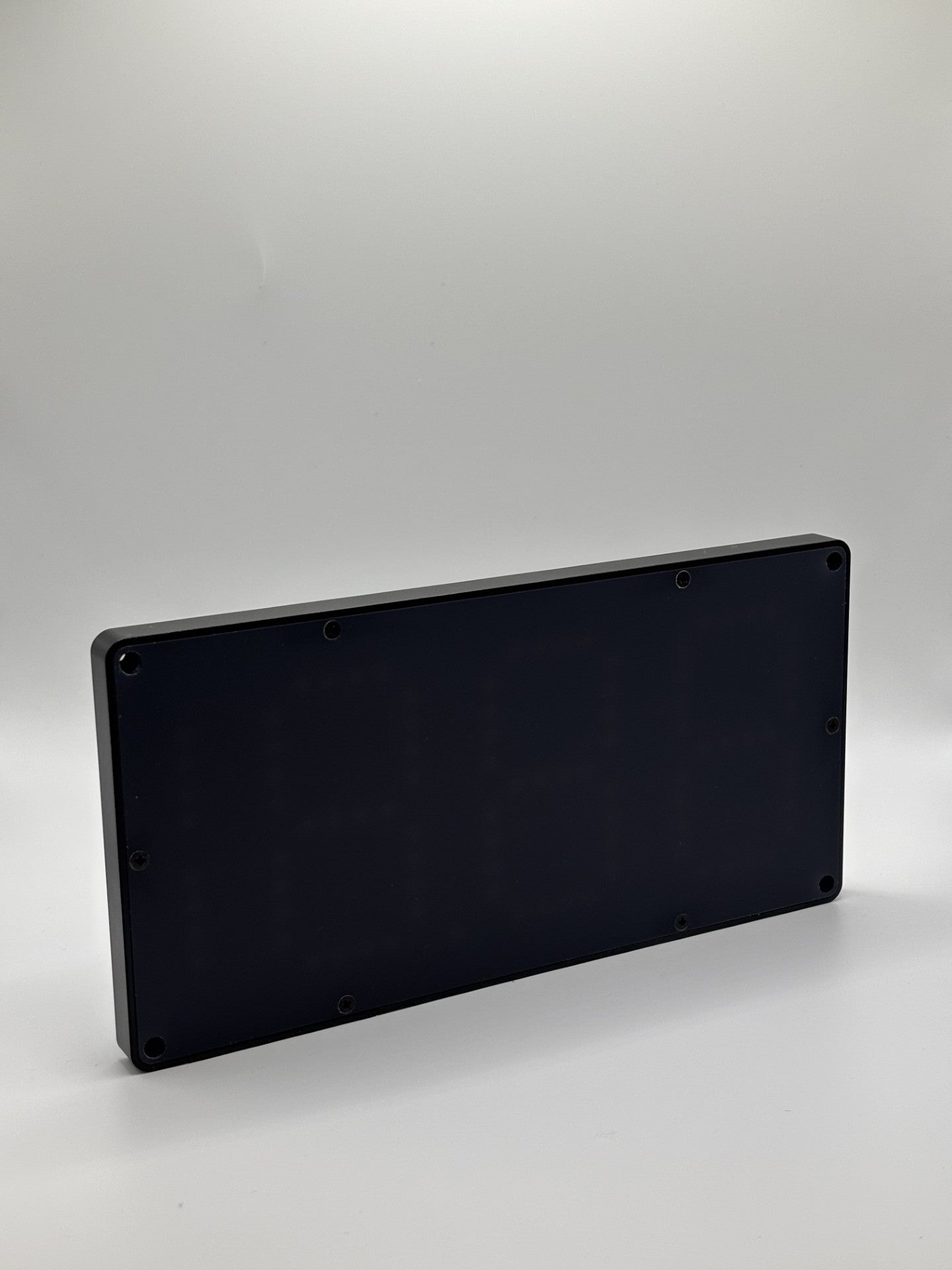

Display
-
Bright LEDs that are easily seen during the day and at any angle
-
Multicolor LEDs that can be changed to any RGB color code (see RGB color generator)
- Customizable preset color options
-
Compact size allows for mounting in smaller areas compared to other boards
-
Ability to display values 0.00-19.99
-
Modular design that allows two single sided boards or one dual sided board (mounts available here)
-
Easy plug-in connection to controller with standard, off the shelf, RJ45 cables. No separate power or ground wires needed
-
Black anodized, billet aluminum enclosures
Specifications and Dimensions
Specifications and Dimensions
Controller:
Dimensions (W x H x D):
4.25” x 3.00” x 1.00”
Mounting Hole Dimensions (W x H)
3.088” x 2.440”
Current Draw
~0.5 amps (with all colors at full brightness)
Display:
Dimensions (W x H x D):
7.50” x 3.75” x 0.81”
(Dual sided: 7.50” x 3.75” x 1.23”)
Mounting Hole Dimensions (W x H):
7.075” x 3.325” (#8-32 thru holes)
Current Draw (Both Display)
~3 amps (with all colors at full brightness)
